Open-Type Punch Press Multi-Station Hot Forging CNC Manipulator (KTS/KTQ Series)

Overview

Both the KTS series and KTQ series multi-station hot forging CNC manipulators are compatible with specially customized open-type fixed-table pneumatic and servo punch presses. They provide automated solutions for hot forging production scenarios, helping to improve production efficiency and processing precision.

Comparison of Core Parameters and Features

Comparison Items KTS Series KTQ Series Common Instructions
Host Structure Dual Host (Dual Head) Single Host (Single Head) Both are CNC-driven, suitable for multi-station hot forging operations
Lifting Method Servo Lifting (Standard Configuration) Pneumatic Lifting (Optional Configuration) Lifting function is a core module for operation adaptation
Standard Lifting Stroke 0~35mm (Stepless Adjustment) 6mm (Fixed, Non-Adjustable) Non-standard stroke must be specified when placing an order
Maximum Lifting Stroke No definite upper limit (Determined when placing an order) ≤12mm Super standard stroke requires prior communication for customization
Compatible Punch Press Type Specially customized open-type fixed-table pneumatic punch press (Non-customized ones can be modified) Specially customized open-type fixed-table pneumatic punch press (Non-customized ones can be modified) Non-customized punch presses can be modified as appropriate
Model Composition Rule KTS + Die Spacing – Punch Press Tonnage (Example: KTS250-250, indicating step distance 250mm, suitable for 250-ton punch press) KTQ + Die Spacing – Punch Press Tonnage (Example: KTQ250-250, indicating step distance 250mm, suitable for 250-ton punch press) Supports non-standard model customization

Detailed Description by Series

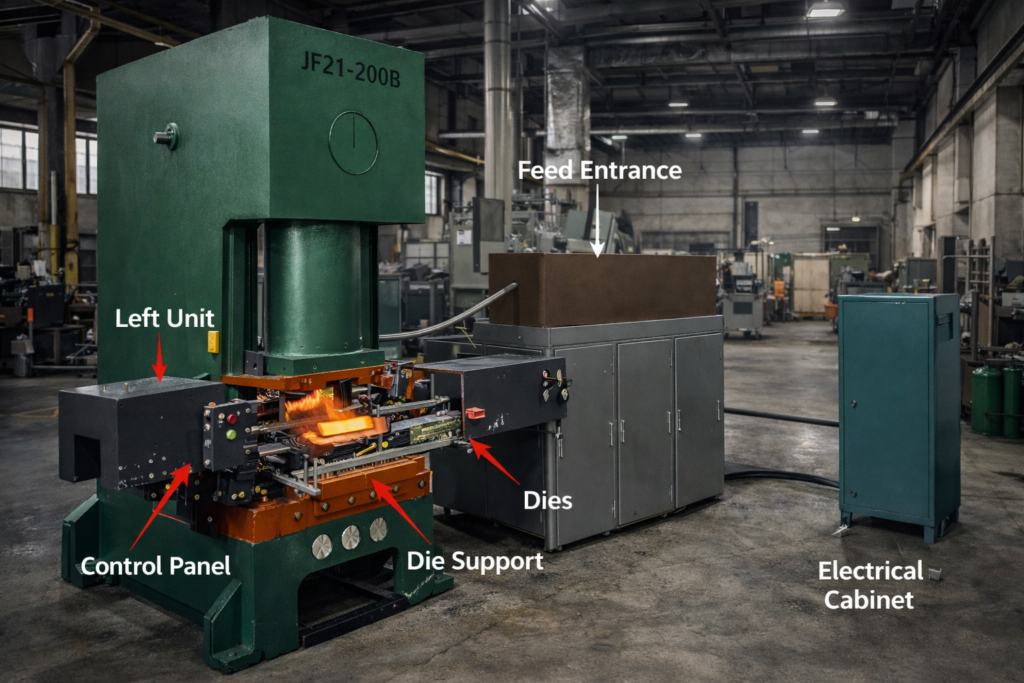

KTS Series Multi-Station Hot Forging CNC Manipulator

Core Features

  • Dual-head design, higher operation efficiency, suitable for multi-process continuous hot forging scenarios;
  • Servo lifting system, stable operation and high precision, with stepless adjustment of lifting stroke;
  • Supports non-standard stroke customization to meet the processing needs of products with different heights.

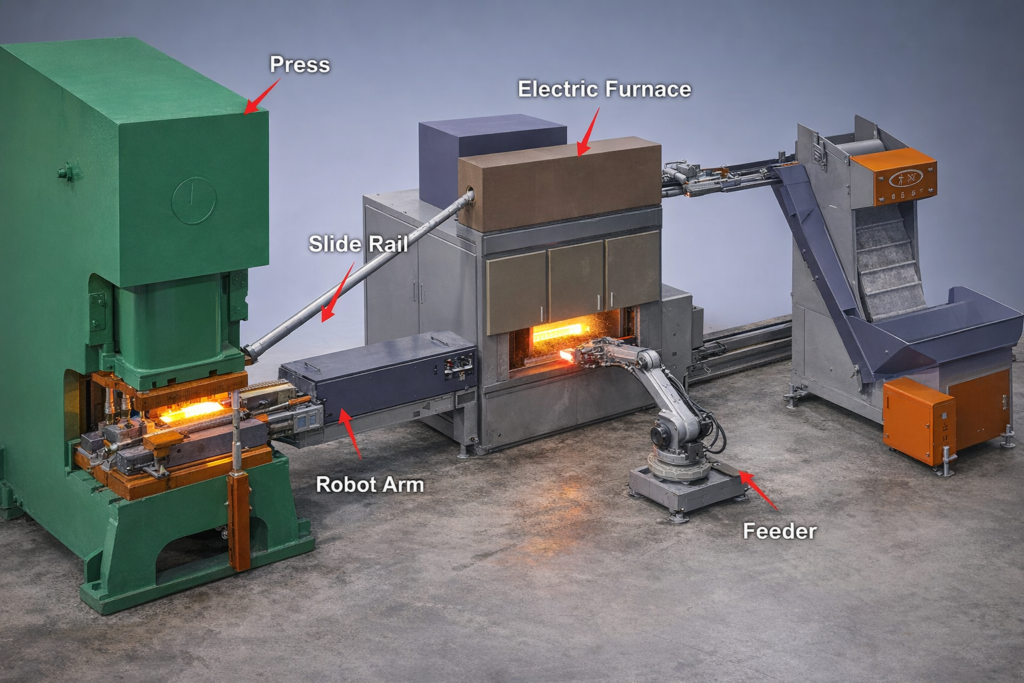

KTQ Series Multi-Station Hot Forging CNC Manipulator

Core Features

  • Single-head structure, simple and compact design, suitable for the production of small and medium-sized hot forging products;
  • Optional pneumatic lifting function, controllable cost, meeting basic lifting needs;
  • Fixed standard stroke, stable and reliable operation, low maintenance cost.

Selection Specifications and Operation Instructions

Core Selection Principle: First determine the punch press tonnage, then select the step distance according to the maximum product outer diameter; supports non-standard model customization (e.g., KTS220-250, KTQ250-400, etc.)

Key Term Explanations

  1. Double Punch: The punch press produces 1 product with 1 action;
  2. Single Punch: The punch press produces 1 product with 2 actions;
  3. Asynchronous Production: Refers to the manipulator moving first, followed by the punch press; this mode can produce taller products.

Special Product Selection

If the product to be produced is a hexagon nut, the diagonal dimension of the hexagon can be used as a reference for selection. The specific steps are as follows:

  1. Determine the required punch press tonnage according to production needs;
  2. Measure the diagonal dimension of the hexagon nut, and determine the appropriate step distance in combination with the maximum product outer diameter; when selecting, first choose the punch press tonnage, then select the step distance according to the maximum product outer diameter. The model can be one not listed in the above table, such as KTS220-250, KTS250-400;
  3. Select the corresponding model or customize a non-standard model according to the determined step distance and punch press tonnage.

Important Notes

  • This equipment is a non-standard customized product. If there are any changes in appearance, model, configuration, etc., the actual product shall prevail, and no separate notice will be given;
  • Non-customized open-type fixed-table pneumatic punch presses can only be modified for adaptation after professional evaluation.

Series Product Summary

Both the KTS series and KTQ series multi-station hot forging CNC manipulators focus on open-type punch press hot forging scenarios. The core differences lie in the host structure and lifting system: the KTS series with dual heads + servo lifting is suitable for production scenarios requiring high efficiency, high precision, and large stroke; the KTQ series with single head + optional pneumatic lifting is suitable for scenarios requiring simplicity, low cost, and basic stroke. Both support non-standard customization and can be flexibly selected according to specific production products and punch press specifications.
